Hydraulic Filtration

Block Mounting Filter

For direct mounting in pumps and control blocks.

Block Mounting Filters are suitable for direct mounting on pump and control blocks. They are installed upstream of the control or regulating devices to be protected.

Product variants

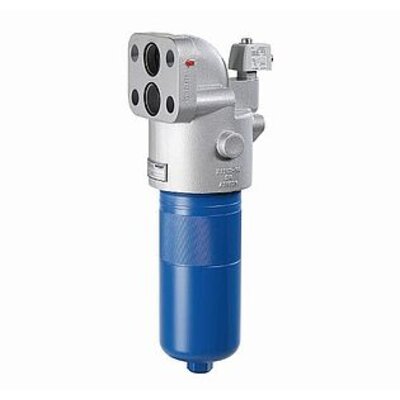

245PSF (N)

245PSF (N)

  • Cyclone-Effect

  • Drain plug from NG 0160

  • Optional measuring connections from NG 0160

  • 2 Minimess connections NG 0130 - 1000

  • 2 Minimess connections NG 0160 - 0400

Nominal size
0040 - 1000
Maximum Air flow in l/min.
800
Maximum operating pressure in bar
450
Replacement filter element
2.0040 - 1000

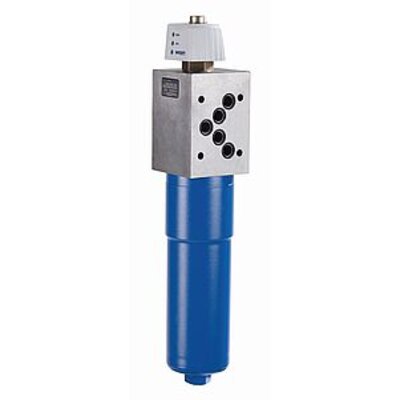

320PZR

320PZR

  • Cyclone-Effect

  • Filter bowl position right PZR

  • Filter bowl position left PZR

Nominal size
0040 - 0400
Maximum Air flow in l/min.
450
Maximum operating pressure in bar
250
Replacement filter element
2.0040 - 0400

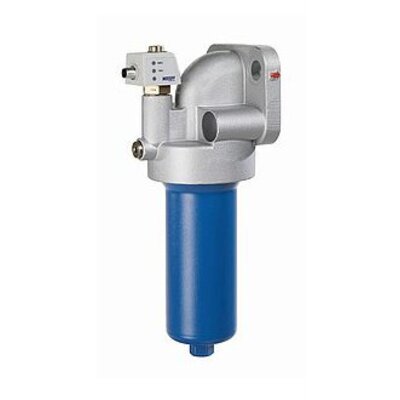

350PSF (N)

350PSF (N)

  • Cyclone-Effect

  • Drain plug from NG 0160

  • Optional measuring connections from NG 0160

  • 2 Minimess connections NG 0130 - 1000

  • 2 Minimess connections NG 0160 - 0400

Nominal size
0040 - 1000
Maximum Air flow in l/min.
800
Maximum operating pressure in bar
350
Replacement filter element
2.0040 - 1000

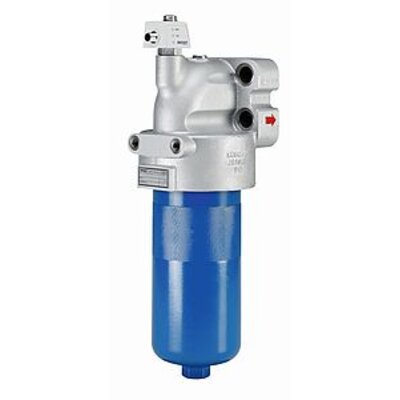

450FE (N)

450FE (N)

  • Cyclone-Effect

  • Connection up to DN50

  • Filter for block attachment, outlet via inlet

  • Measuring connection drilled and sealed as standard

Nominal size
0040 - 1000
Maximum Air flow in l/min.
800
Maximum operating pressure in bar
450
Replacement filter element
2.0040 - 1000

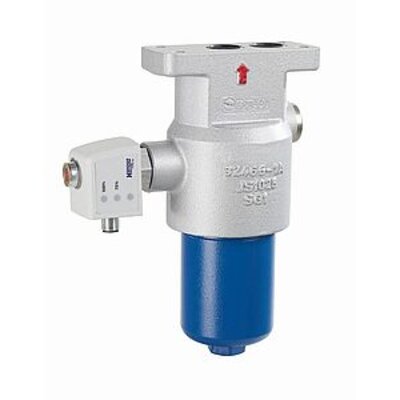

450PBF (N)

450PBF (N)

  • Drain plug from NG 0160

  • Only 450 NG 0630 (split filter bowl on request) and 1000 standard split filter bowl for simplified maintenance

  • Optional measuring connections from NG 0160

  • Optical maintenance indicator standard for all series (connection up to NW40 for sizes 630 and 1000)

Nominal size
0025 - 0125
Maximum Air flow in l/min.
33
Maximum operating pressure in bar
320
Replacement filter element
2.0025 - 0125

Catalog/Webshop

You will find the right filter for your hydraulic application in our Filter-Select design tool and with Fit4Filter you can convert any Filter Elements to Hengst Filter Elements.

Via our Webshop we offer you as a registered customer the opportunity to handle ordering processes digitally, quickly and securely. To register, please get in touch with your known contact person or send us an e-mail.
