Hydraulic Filtration
Inline filter
For the separation of solids and pressure fluids and lubricating oils.
Inline filters are used in hydraulic systems for separating solid materials from the hydraulic fluids and lubricating oils. They are intended for attachment in pipelines.
Product variants

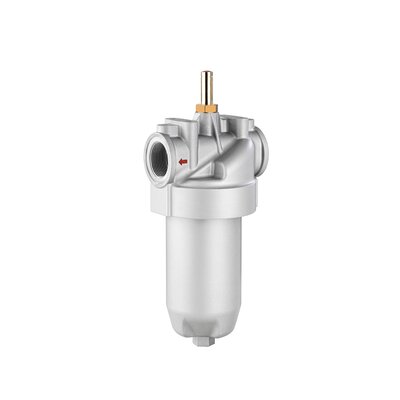

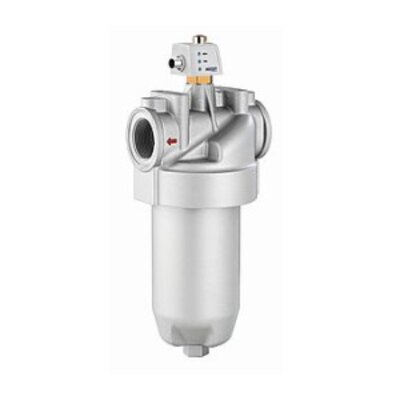

110LE (N)
Cyclone effect
Forcing spring for filter element change
Drain plug from NG0160
Optional test ports from NG0160
Opional hydraulic connections with UNF thread

245LE (N)
Cyclone effect
Only 350, 445 NG0630 (split filter bowl on request) standard from NG1000 upwards (simplified maintenance)
Drain plug from NG0160
Opional hydraulic connections with UNF thread
Only 445 LEN top outlet optional (outlet closed opposite)

250LE (N)

350LE (N)
Cyclone effect
Only 350, 445 NG0630 (split filter bowl on request) standard from NG1000 upwards (simplified maintenance)
Drain plug from NG0160
Opional hydraulic connections with UNF thread
Only 445 LEN top outlet optional (outlet closed opposite)

445LE (N)
Cyclone effect
Only 350, 445 NG0630 (split filter bowl on request) standard from NG1000 upwards (simplified maintenance)
Drain plug from NG0160
Opional hydraulic connections with UNF thread
Only 445 LEN top outlet optional (outlet closed opposite)

40FLE / FLE (N)
Filter element change possible without tools
Filter element change possible from above
Optical maintenance indicator
Drain plug
Bypass valve at the highest position of the filter cover (no gas / air accumulation)

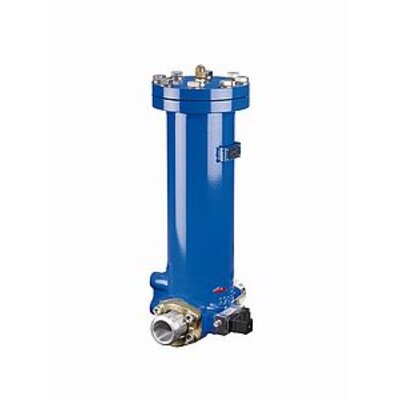

100FLE / FLE (N)
Filter element change possible from above
Optical maintenance indicator
Drain screw for complete emptying of the filter
Bypass valve at the highest position of the filter cover (no gas / air accumulation)

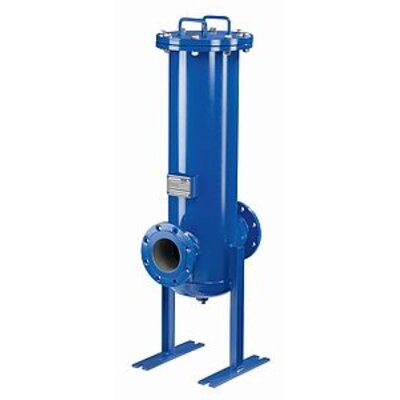

16FE
Visual maintenance indicators
Drain plug
Bypass valve at highest position of filter cover (no gas / air accumulation)
Optional vent valve from NG4000 upwards
Opional from NG4000 lid lifting device
