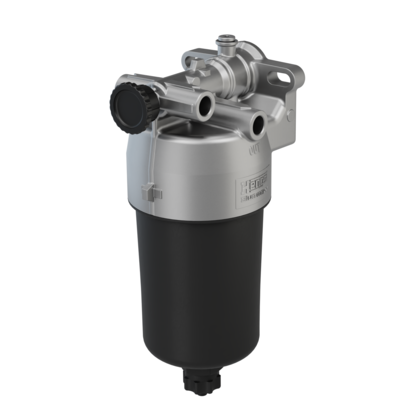

Fuel filter construction kit Blue.maxx
Fuel Filtration

Fuel filter construction kit Blue.maxx

The flexible fuel filter concept

Maximum engine efficiency for on- and off-highway applications.

The requirements for fuel purity to operate modern diesel engines are constantly increasing.

Hengst Filtration stays on top of the latest trends in engine technology and has developed a modular system for fuel filtration. It consists of basic variants available as standard and can be customized by five innovative add-ons.

Blue.maxx is a fuel filter system that is characterized in particular by very effective water separation and can be optimally adapted to any application. Use our configurator to put together your individual Blue.maxx.



Advantages

Fuel filter construction kit Blue.maxx – Your customer benefit at a glance:

  • High degree of customization - available at short notice

  • Leading quality standards in filtration - directly visible compared to conventional Spin-on filters

  • High degree of water separation over lifetime - guaranteed through innovative filter design

  • Patent-protected filter elements guarantee high functional reliability & the aftermarket business

Add-Ons

The Blue.maxx basic variants can be supplemented with various add-ons.

Pump

hand feed pump

hand feed pump

  • Robust piston hand feed pump

  • Up to 20 ml per stroke (more than 3 time more than membrane pumps)

Operating temperature range
- 40°C … + 120°C
Pump volume per stroke
13 … 20 ml / per Hub
Suction height
5m
electrical pump

electrical pump

  • Robust brushless vane pump

  • Guaranteed lifetime up to 4000 h

  • Optional bypass valve available

  • 2-pin connector (Tyco AMP 282104-1)

  • Electrical voltage 12V & 24V

supply voltage
6V ... 32V DC
Operating temperature range
- 40°C … + 120°C
Operating pressure range
- 35 kPa up to 600 kPa
Maximum volume flow in l/min.
at 40kPa 250l/h

Water sensor

Active water sensor (WiF)

Active water sensor (WiF)

  • Sensors work with own electronics

  • Measured value is evaluated in sensor

  • Connection of optical sensor-signal possible

  • 3-pin contacts (Tyco HDSCS 3 Pos Group A)

supply voltage
3V … 36V AC/DC
Operating temperature range
- 40°C … + 120°C
Operating pressure range
up to 1500 kPa
passive water sensor

passive water sensor

  • Sensors operate without electronics

  • External evaluation electronics required

  • Interface to ECU required

  • 2-pole contacts used (Tyco German DT04-2P)

supply voltage
3V … 36V AC/DC
Operating temperature range
- 40°C … + 120°C
Operating pressure range
up to 1500 kPa

Connector SAE

8 mm

8 mm

  • Material: polyamide & brass

  • Type: SAE J 2044 / thread M16x1,5

  • Sealing: acc. to ISO6149 or with gasket DIN7603

Operating temperature range
- 40°C … + 120°C
Operating pressure range
up to 1500 kPa
10 mm

10 mm

  • Material: polyamide & brass

  • Type: SAE J 2044 / thread M16x1,5

  • Sealing: acc. to ISO6149 or with gasket DIN7603

Operating temperature range
- 40°C … + 120°C
Operating pressure range
up to 1500 kPa
12 mm

12 mm

  • Material: polyamide & brass

  • Type: SAE J 2044 / thread M16x1,5

  • Sealing: acc. to ISO6149 or with gasket DIN7603

Operating temperature range
- 40°C … + 120°C
Operating pressure range
up to 1500 kPa

Filterlement

Single-stage

Single-stage

  • High water separation performance

  • Regeneration after water breakthrough

  • Accumulation of water outside the filter element and drainage to water bowl

Water separation
93 % … 100 %
Water separation aged
20 % … 80 %
Compatibility
Diesel, Biodiesel, Ethanol, Synthetische Kraftftoffes, Kerosin
Application
Saug- und Druckseitig
multistage

multistage

  • High and robust water separation performance by adjustable filtration-, coalescing- and draining-stage design

  • Compensating ageing and high water impact over whole filter element lifetime

  • Accumulation of water inside the filter element and drainage to water bowl through bottom

Water separation
93 % … 100 %
Water separation aged
>80 %
Compatibility
Diesel, Biodiesel, Ethanol, Synthetische Kraftftoffes, Kerosin
Application
Saug- und Druckseitig

Filter performance

Premium 2 Filterelement (4 µm)

Premium 2 Filterelement (4 µm)

  • High efficiency filter element mainly for pressure side

  • Designed for main filter application

  • Available in four sizes depending on volume flow

Efficiency
>97 % @4 µm
Volume flow (nominal)
100 l/h … 450 l/h
Lifetime
>100 l/h … 450 l/h
Premium 10 Filterlement (10 µm)

Premium 10 Filterlement (10 µm)

  • High efficiency filter element mainly for suction side

  • Designed for pre filter application

  • Available in four sizes depending on volume flow

Efficiency
>97 % @10 µm
Volume flow (nominal)
100 l/h … 450 l/h
Lifetime
>1500 h | >90.000 km
Premium 30 Filterelement (30 µm)

Premium 30 Filterelement (30 µm)

  • Efficient filter element with extended lifetime

  • Designed for pre filter application, mainly for suction side

  • Available in four sizes depending on volume flow

Efficiency
>97 % @30 µm
Volume flow (nominal)
100 l/h … 450 l/h
Lifetime
>2000 h | >120.000 km

Heater

Stabheizung - Blue.maxx 100 & 200

Stabheizung - Blue.maxx 100 & 200

  • Heater with one PTC mounted on a tube

  • Integrated thermoswitch to control on/off state

  • 2-pin connector (Tyco AMP 282104-1)

  • Electrical voltage 12V & 24V

supply voltage
6 … 16V / 18 … 32V AC/DC
Operating temperature range
- 40°C … + 120°C
Operating pressure range
0 … 1500 kPa
Nominal power
150W
Ringheizung - Blue.maxx 300 & 450

Ringheizung - Blue.maxx 300 & 450

  • Heizelement mit vier PTCs zwischen zwei Platten

  • Integrierter Thermoschalter zur Steuerung des Ein- und Ausschaltzustandes

  • 2-poliger Stecker Elektrische Spannung 12V & 24V

supply voltage
6 … 16V / 18 … 32V AC/DC
Operating temperature range
- 40°C … + 120°C
Operating pressure range
0 … 1500 kPa
Nominal power
150W

Configurator

Configure now the Blue.maxx for your application:

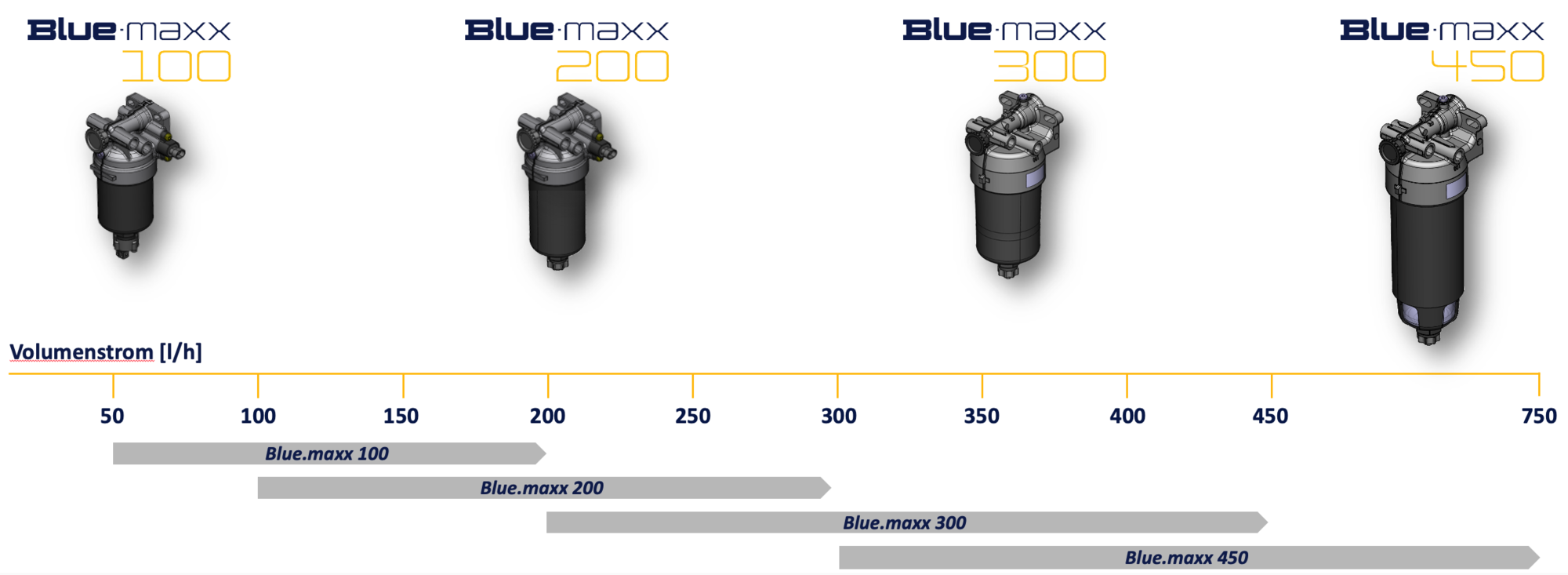

Blue.maxx 100
Blue.maxx 200
Blue.maxx 300
Blue.maxx 450

Blue.maxx 100
For volume flows from 50-200 (l/h)
Blue.maxx 200
For volume flows from 100-300 (l/h)
Blue.maxx 300
For volume flows from 200-450 (l/h)
Blue.maxx 450
For volume flows from 300-750 (l/h)

Height h [mm]249295314399
Width b [mm]9696122122
Depth t [mm]118118148148
Connecting thread [mm]M16x1,5 (4x)M16x1,5 (4x)M16x1,5 (4x)M16x1,5 (4x)
Volume flow (nominal)100 [l/h]200 [I/h]300 [I/h]450 [I/h]
Temperaturefrom -30 to 120 °Cfrom -30 to 120 °Cfrom -30 to 120 °Cfrom -30 to 120 °C
Operating pressure suction side-0,3 ... 4 [bar]-0,3 ... 4 [bar]-0,3 ... 4 [bar]-0,3 ... 4 [bar]
Initial efficiency according to ISO 1943897 % (@ 10 μm)97 % (@ 10 μm)97 % (@ 10 μm)97 % (@ 10 μm)
Dust holding capacity (nominal) ISO 1943820 g (dp = 30kPa)30 g (dp = 30kPa)40 g (dp = 30kPa)69 g (dp = 30kPa)
Water separation efficiency according to ISO 16332 (60 μm @0.15 %)99 %99 %99 %99 %

References

Blue.maxx 200 for the Hatz 4-cylinder industrial diesel engine

Blue.maxx 200 for the Hatz 4-cylinder industrial diesel engine

As an "all-in-on solution", the Blue.maxx 200 for Hatz combines the function of the pre-filter and main filter, including reliable water separation, compactly in one filter element.

Customer
Hatz
Type of product
Blue.maxx 200 as a combination of pre-filter and main filter
Engine(s)
Hatz 4H50 diesel engine
Model
a.o. Schmitz Cargull refrigerated trailers
Blue.maxx 300 for Bladon microturbines for dencentralized power generation for radio towers

Blue.maxx 300 for Bladon microturbines for dencentralized power generation for radio towers

The Blue.maxx 300 with manual feed pump from modular solution with continuous deaeration.

Customer
Bladon
Type of product
Blue.maxx 300
Engine(s)
Micro turbine
Model
Radio towers
Blue.maxx 300 for Volvo Mack medium-duty commercial vehicles

Blue.maxx 300 for Volvo Mack medium-duty commercial vehicles

Blue.maxx 300 with three-stage Koallesenz filter insert and manual feed pump.

Customer
Volvo Mack
Type of product
Blue.maxx 300
Engine(s)
MACK MP7 & MP8
Model
Anthem, Pinnacle, Granite
